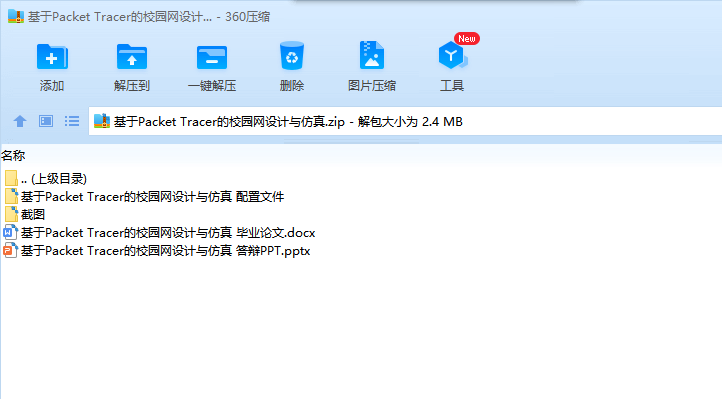

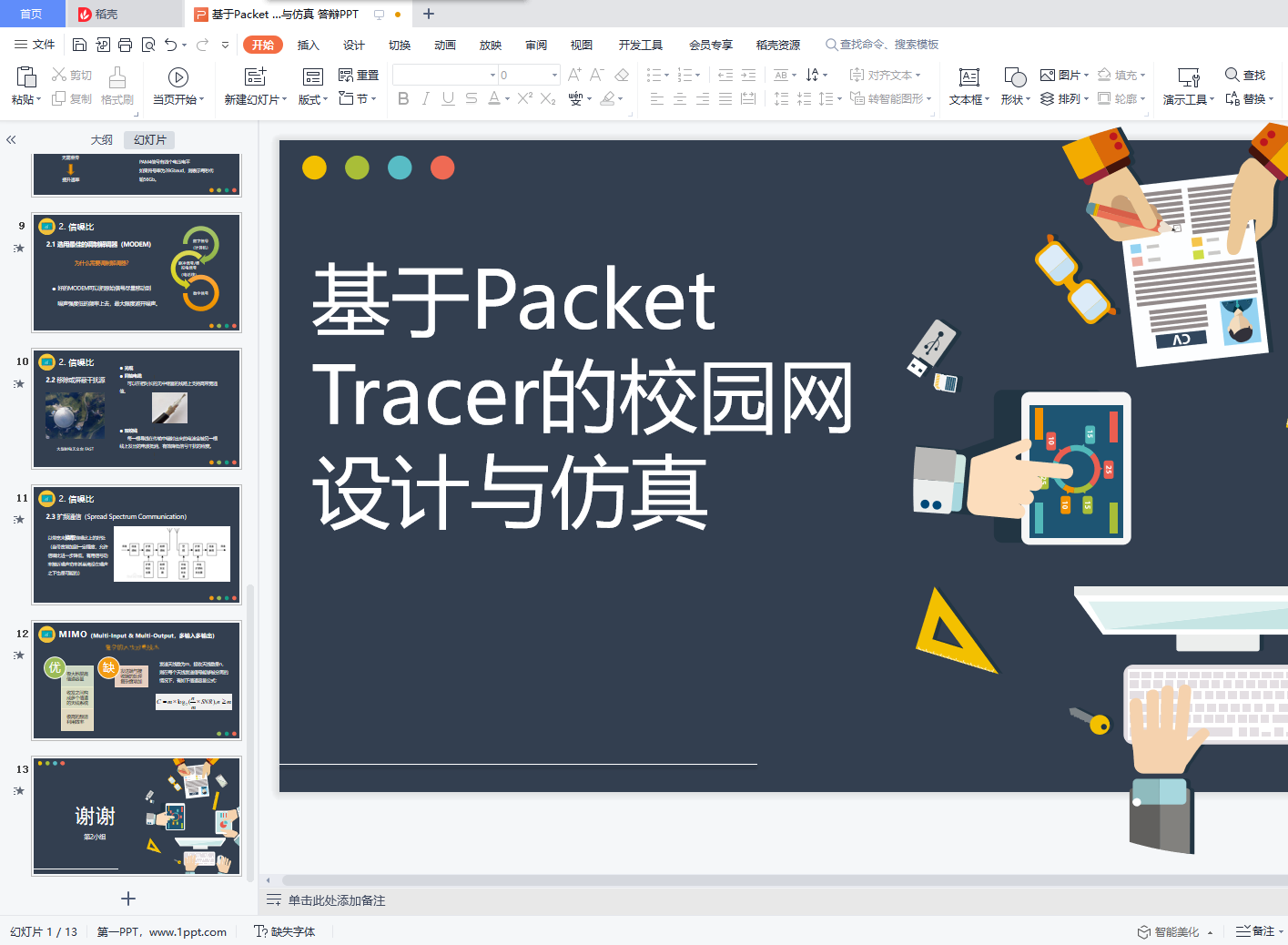

基于Packet Tracer的校园网设计与仿真 毕业论文+答辩PPT+配置文件

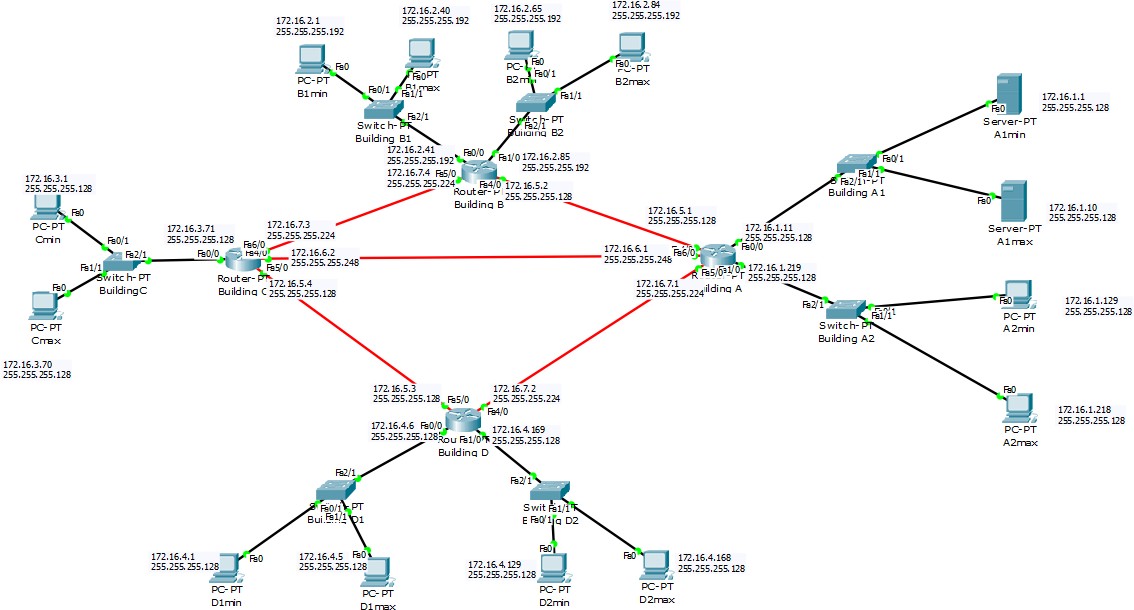

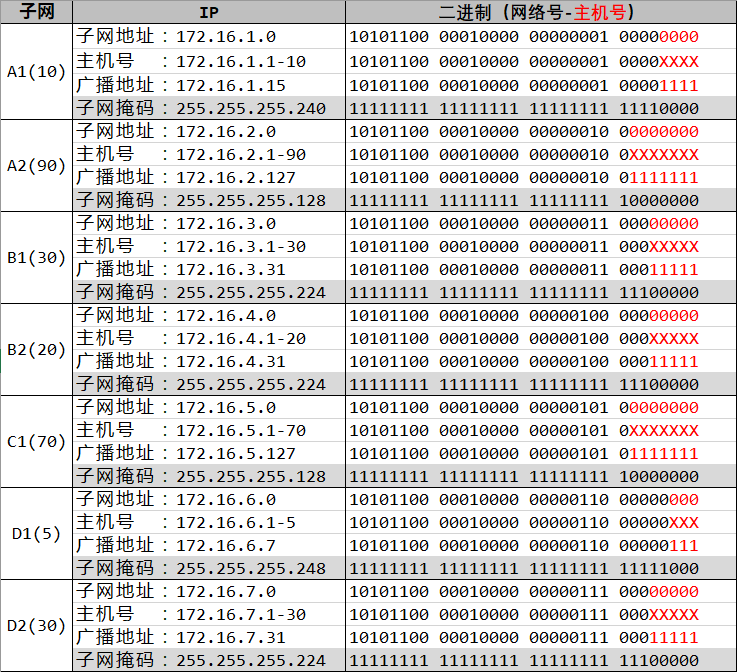

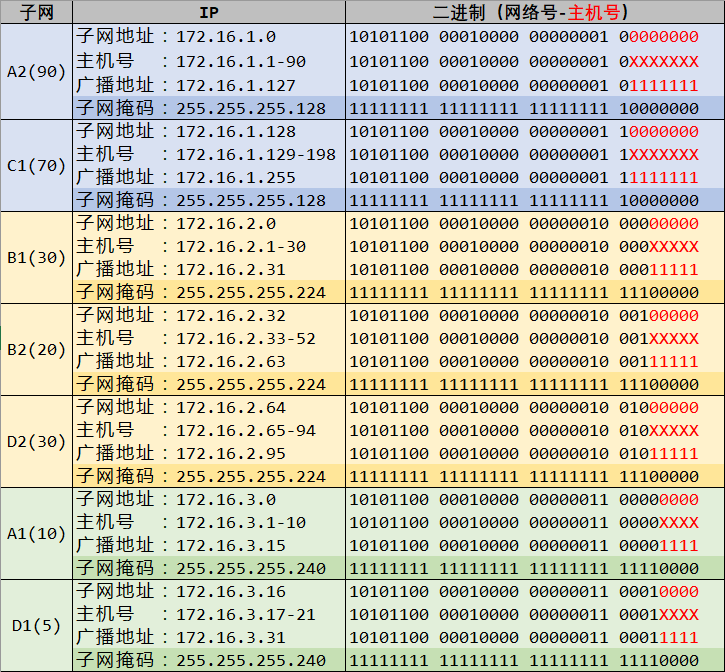

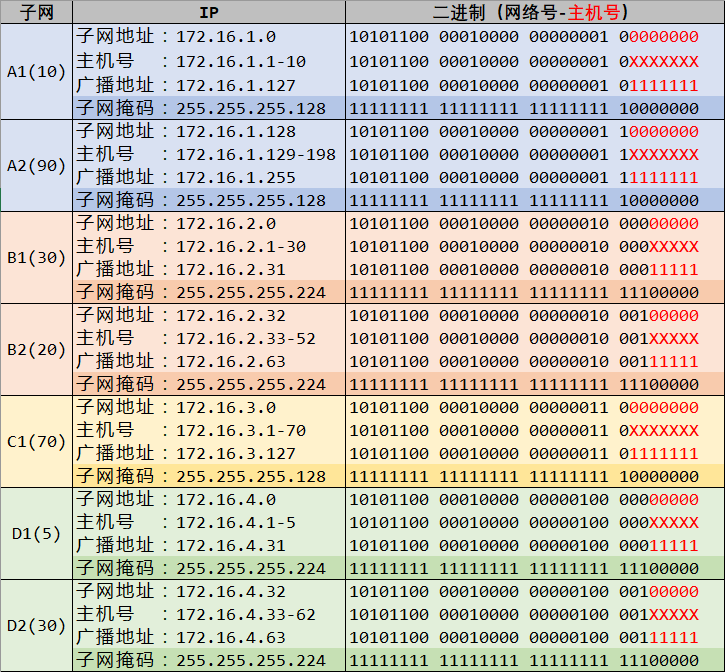

基于Packet Tracer的校园网设计与仿真小型园区网设计规划是计算机网络综合技能训练的重要实验内容,分析校园网构建的关键技术,采用Cisco Packet Tracer软件设计仿真校园网络拓扑规划,网络设备选型,网络设备互联配置命令,实现校园网的基本功能.教学实践表明,采用Packet Tracer仿真软件提高了学生网络实验设计的兴趣,综合设计案例教学增强了学生分析解决问题的能力,培养了学生的创新思维,在实践教学中取得了较好的教学效果.关键词：校园网；规划设计；仿真设计；Packet TracerCampus Network Design and Simulation Based on Packet TracerSmall park network design and planning is an important experimental content of computer network comprehensive skills training. It analyzes the key technology of campus network construction. Cisco Packet Tracer software is used to simulate campus network topology planning, network equipment selection, network equipment interconnection and configuration command to realize the basic functions of campus network. Teaching practice shows that the use of Packet Tracer simulation software improves students 'interest in network experimental design, comprehensive design case teaching enhances students' ability to analyze and solve problems, cultivates students' innovative thinking, and achieves good teaching results in practical teaching.Key words: campus network; planning and design; simulation design; Packet Tracer目录一、 主题 4二、 目标 4三、 方法 4四、 设计需求 4五、 IP 地址规划方案 55.1. IP 规划总览 55.2. IP 规划分析 55.3. 子网路由器端口 IP 分析 65.1. IP地址 65.2. 子网掩码 65.3. 子网的划分 75.7 IP地址分配方案 7六、 Packet Tracer 仿真搭建 96.1. 规划图： 96.2. 静态路由配置 11七、 仿真测通 137.1. 子网内部 ping 通 137.2. 子网间 ping 通 14八、 总结 158.1. 心得体会 158.2. 待改进之处： 15
